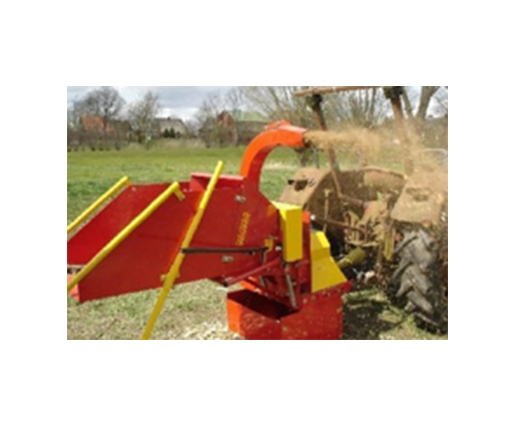

WC Series PTO
PRODUCT DESCRIPTION
| Model | WC-8 |
| Drive system | Direct drive, PTO |
| HP requirements for max. cap (HP) | 60-70 |
| HP range (HP) | 20-100 |
| Number of rotor knives | 4 |
| Knife type | Hardened tool steel |
| Rotor size (inch) | 24 |
| Feeding system feed | Self Feed |
| Mounting System | 3 Point Hitch |
| Blade turning radius (mm) | 302 |
| Max Diameter for Wood (mm) | 200 |
| Chipping efficiency (m3/h) | 8-9 |
| PTO speed (r/min) | 540 |
| PTO spline | 6x6x520 |
| Discharge hood rotation | 360° |
| Power required (HP) | 25-45 |
| Net / Gross weight (kg) | 380 / 390 |
| Dimensions (L*W*H, mm) | 1600*1020*1400 |
